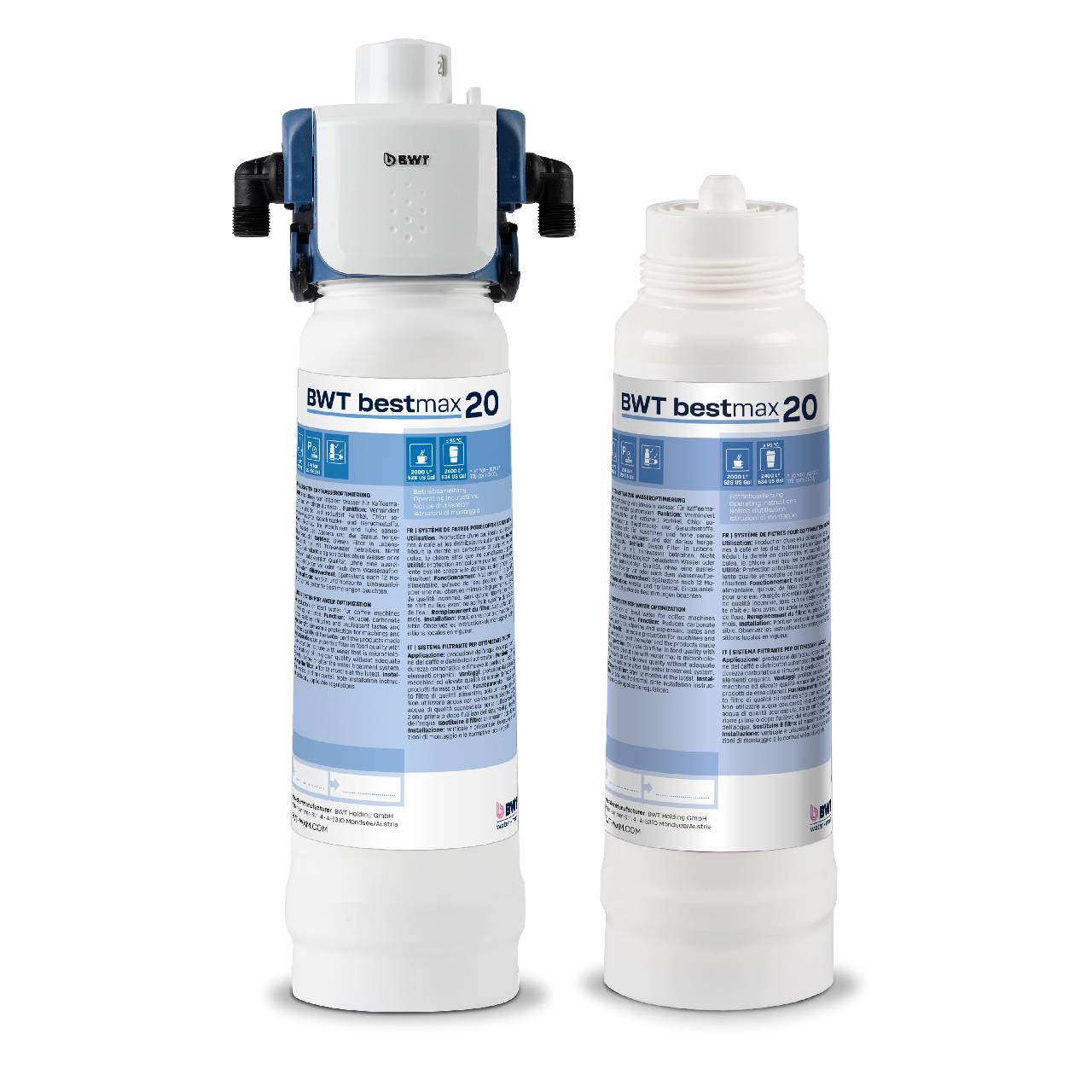

BWT bestmax

The all-rounders 

More information

Filter system for ideal water in hospitality (HoReCa)
Reliably reduces Ca2+, Mg2+, particles, off-flavour elements and chlorine
Cost-effective limescale protection for all kinds of coffee machines
Balanced mineral relationship to guarantee the aroma and enjoyment
Perfect basis for high-quality brewed coffee and coffee specialities
Highly efficient and cost-effective
Universal for approx. 90% of all water situations

Product details

BWT bestmax is the simple and practical all-round filtration solution developed for the numerous requirements in gastronomy. For unique coffee water, ideal water for vending machines and optimal pure steam for ovens and combination steamers. Thanks the new High-Efficiency-Technology (HET), water optimization is even more efficient. The result: consistently high quality of all hot and cold beverages in cups and mugs, in the kitchen and in the bakery, for all foods and baked goods.

Technical advantages of BWT bestmax at a glance:

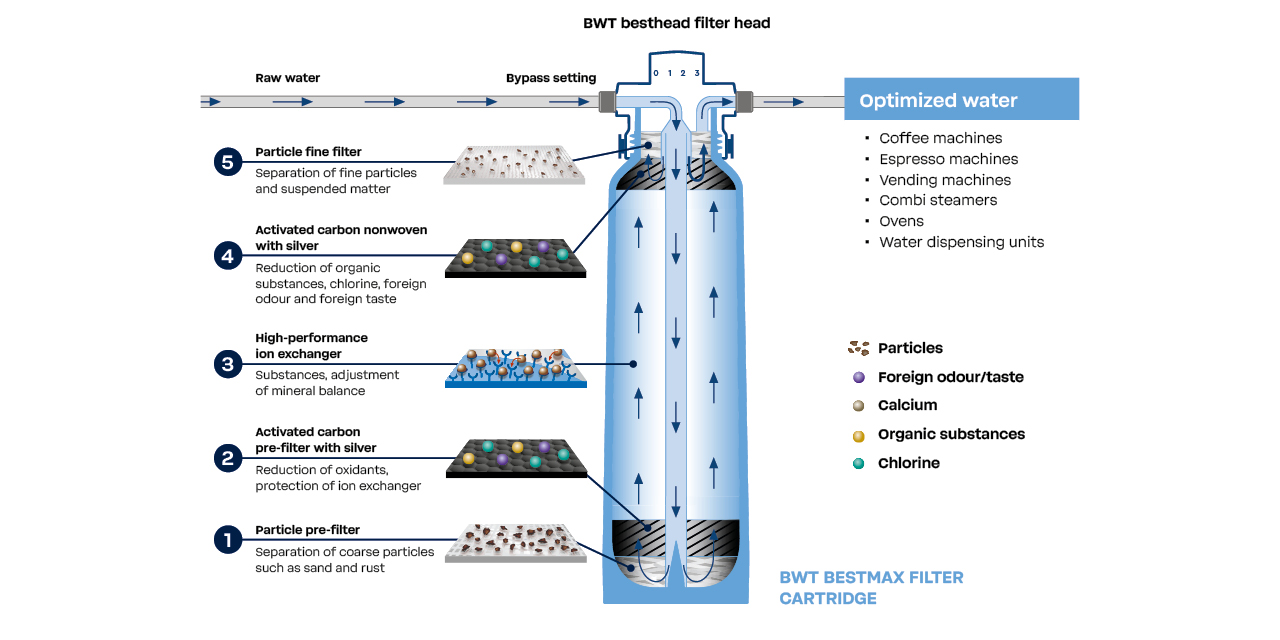

5-stage filtration
Highly efficient limescale protection
Activated charcoal fleece for consistently crystal-clear water
Filtration, also of bypass water
Ease of handling when replacing the filter
Horizontal or vertical installation

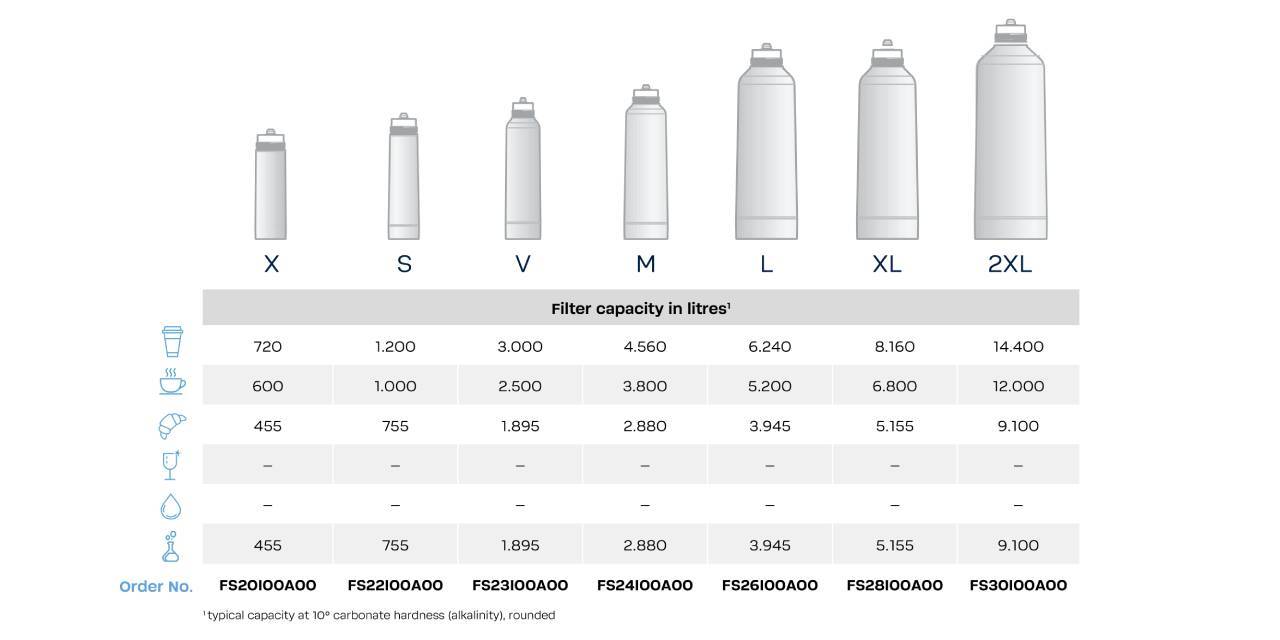

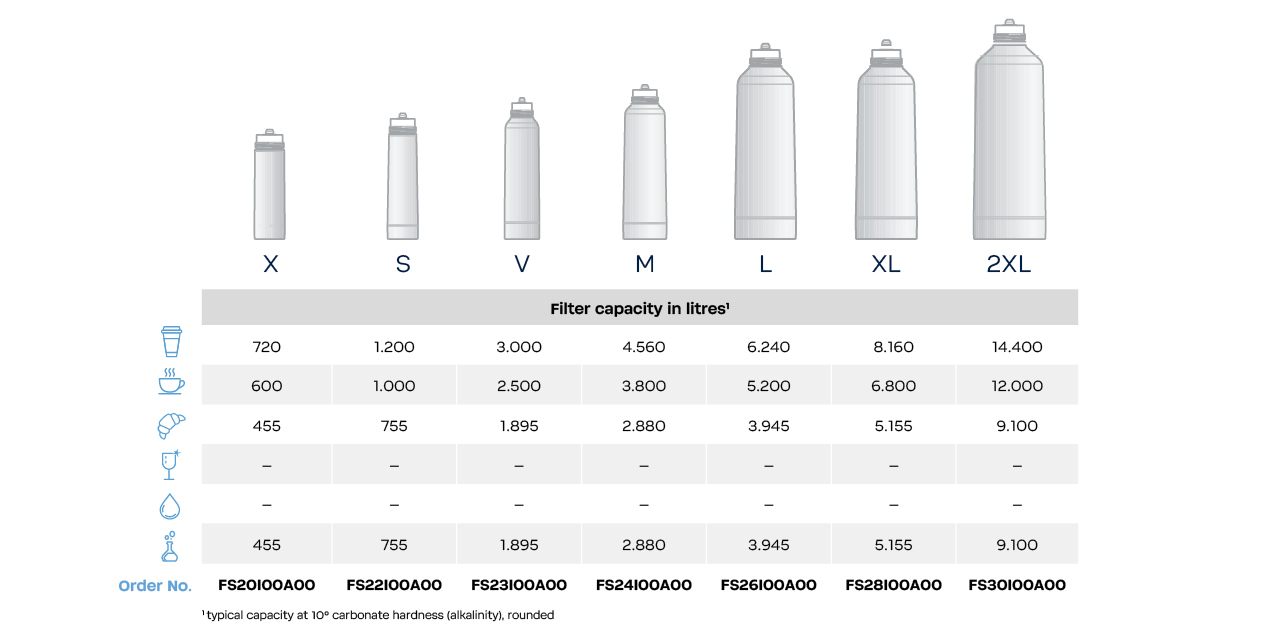

Technical details

BWT bestmax type	X	S	V	M	L	XL	2XL
Connection thread (in/out), (1)	variable	variable	variable	variable	variable	variable	variable
Inlet pressure, min. – max. in bar	2 – 8	2 – 8	2 – 8	2 – 8	2 – 8	2 – 8	2 – 8
Water temperature, min. – max. in °C	4 – 30	4 – 30	4 – 30	4 – 30	4 – 30	4 – 30	4 – 30
Ambient temperature, min. – max. in °C	4 – 40	4 – 40	4 – 40	4 – 40	4 – 40	4 – 40	4 – 40
Total height without bracket (A) in mm, approx.	280	360	420	475	500	500	574
Total height with bracket (B) in mm, approx.	300	385	445	500	530	530	600
Connection height (C) in mm	230	310	370	425	450	450	520
Distance to floor (D) in mm	65	65	65	65	65	65	65
Installation length (E) in mm	125	125	125	125	125	125	125
Ø filter cartridge (F) in mm	88	88	115	130	145	145	185
Weight in kg, approx. (dry/wet)	0.5/1.1	0.9/1.5	2.1/3.2	2.4/4.2	3.4/5.9	3.8/6.0	7.5/11.0
Order no. of filter cartridge	FS20I00A00	FS22I00A00	FS23I00A00	FS24I00A00	FS26I00A00	FS28I00A00	FS30I00A00
