The Protector


More information
  • Special filter system for gastronomy and bakeries
  • Ideal for the production of hot beverages
  • Very well suited for generating steam in combination steamers, steam cookers and ovens
  • Protection against limescale and gypsum deposits
  • Easy to install with universal BWT besthead FLEX connection technology
  • Space-saving design that is very easy to handle
Springe zu

Product details

BWT bestprotect is a filter solution for water with special properties. It not only prevents the formation of limescale and gypsum, but also ensures a consistently high pH value.

BWT thereby protects the valuable machine technology from deposits and prevents corrosion problems on stainless steel parts. Moreover, this filter system delivers water with top sensory characteristics for producing high-quality hot beverages.

Technical advantages of BWT bestprotect at a glance:

  • 5-stage filtration
  • Reliable protection against limescale and gypsum for machines
  • High pH value to minimise the risk of corrosion
  • Activated charcoal fleece for consistently crystal-clear water
  • Ease of handling when replacing the filter

Technical details

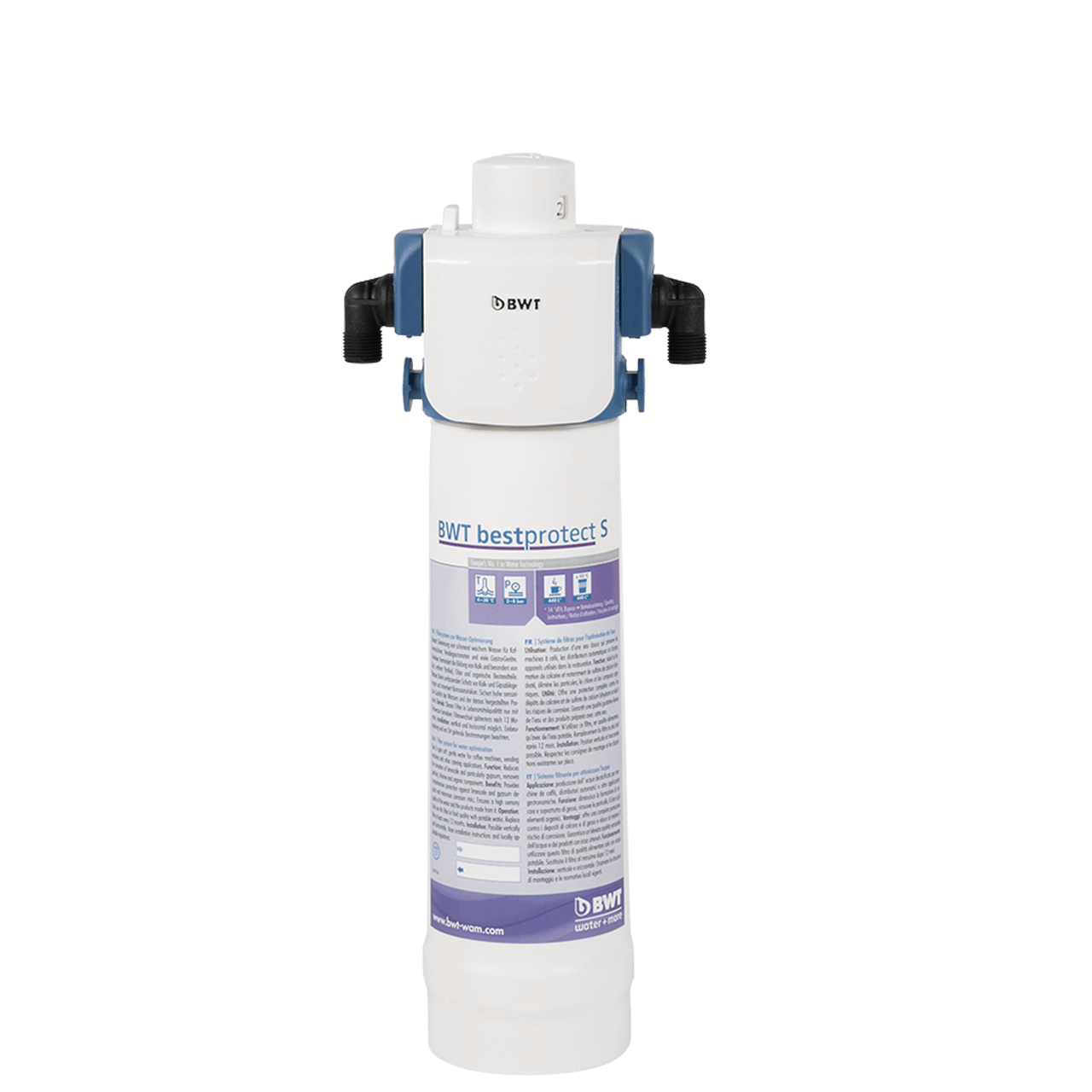

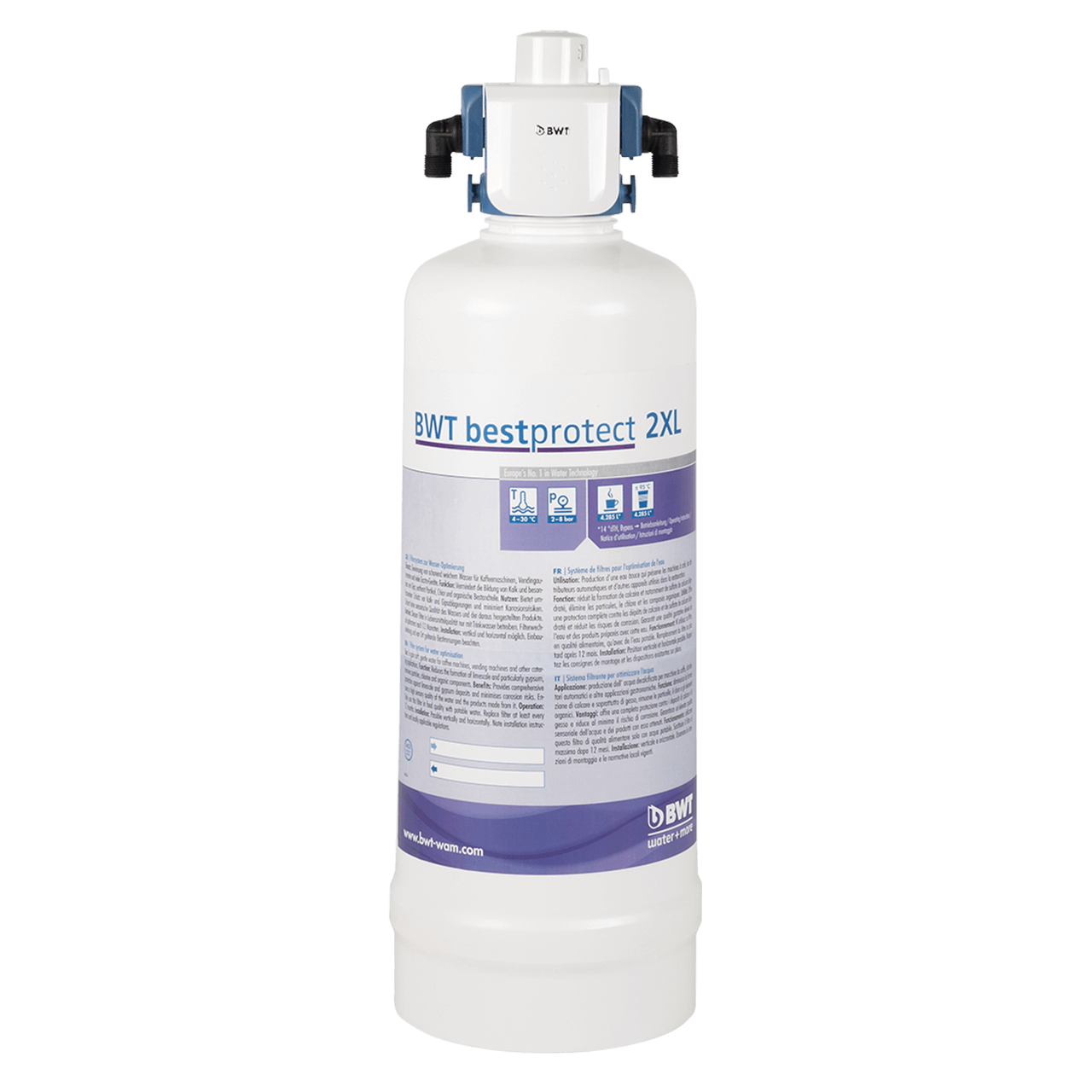

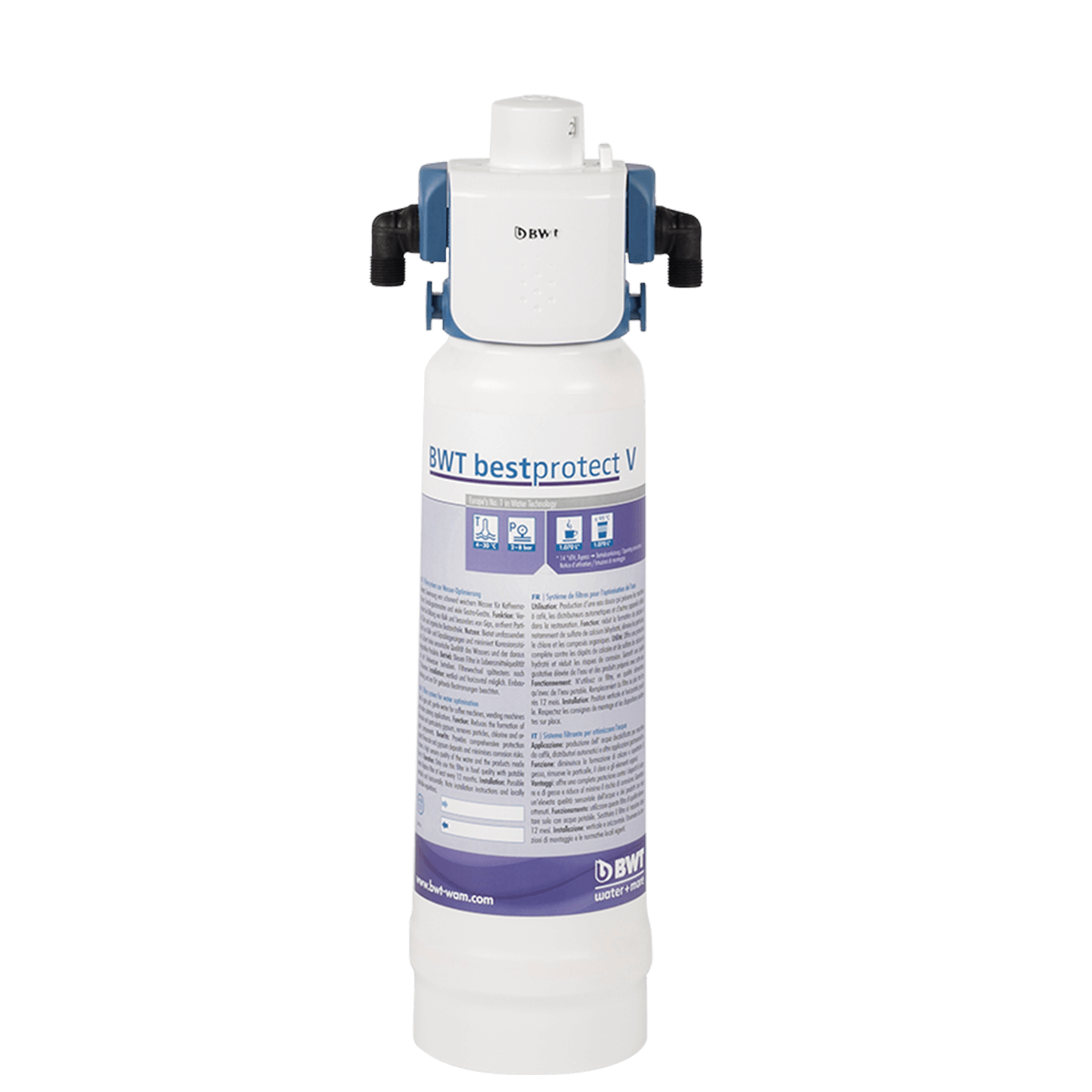

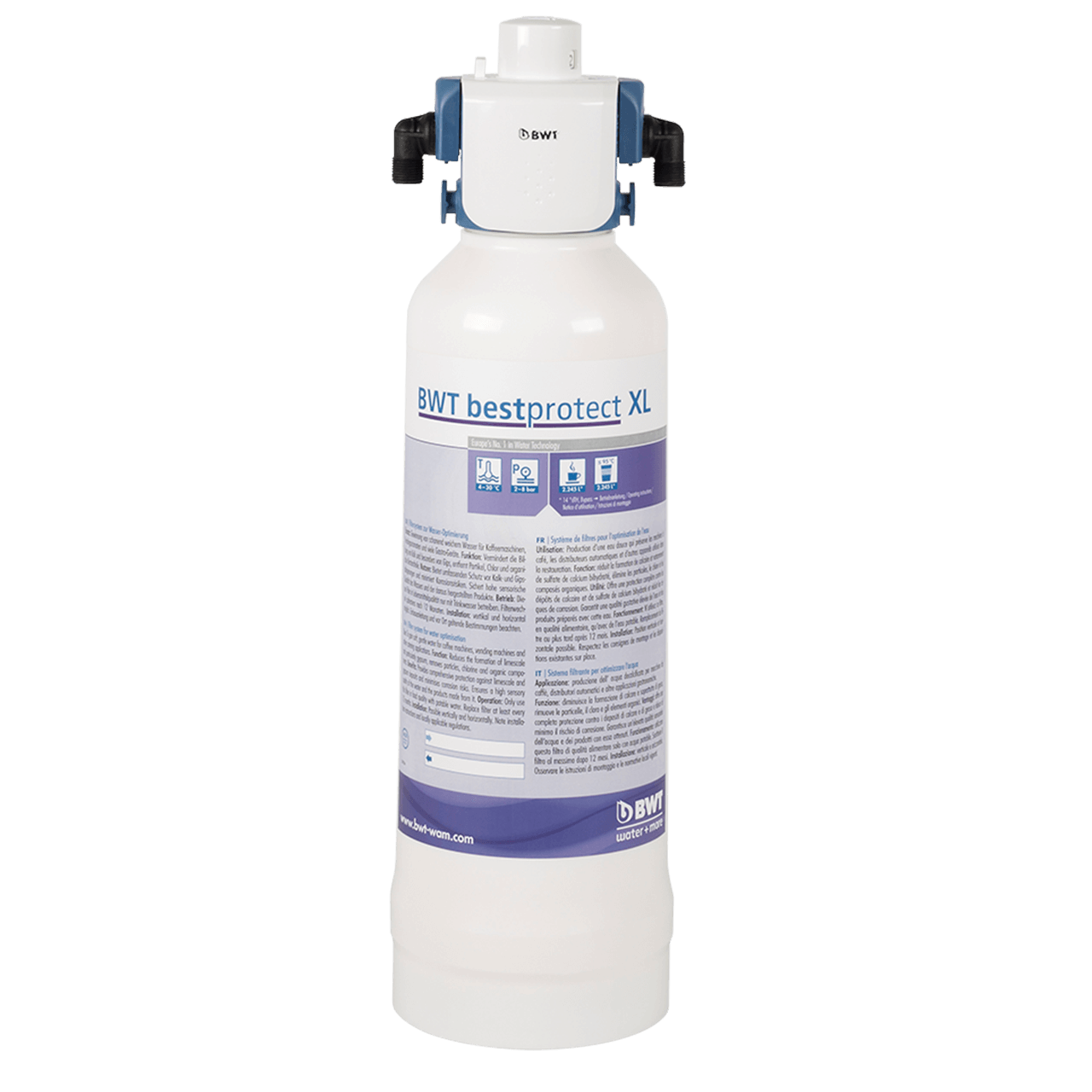

BWT best­pro­tect type S V XL 2XL
Connection thread (in/out), (1) 3/8" 3/8" 3/8" 3/8"
Inlet pressure, min. – max. in bar 2–8 2–8 2–8 2–8
Water temperature, min. – max. in °C 4–30 4–30 4–30 4–30
Ambient temperature, min. – max. in °C 4–40 4–40 4–40 4–40
Total height without bracket in mm, approx. 360 420 502 580
Total height with bracket in mm, approx. 385 445 527 600
Connection height in mm 306 366 448 520
Distance to floor in mm 65 65 65 65
Installation length in mm 125 125 125 125
Ø filter cartridge in mm 88 110 147 185
Weight in kg, approx. (dry/wet) 0.9/1.5 3.0/3.2 4.0/6.0 8.0/11.0
Order no. of filter cartridge FS22N00A00 FS23N00A00 FS28N00A00 FS30N00A00

(1) Connection thread options with BWT besthead FLEX
